Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Detalhes do produto
Lugar de origem: China
Marca: EXCAR
Certificação: CE
Número do modelo: Ck2+2ff
Documento: Excar catalog.pdf
Termos de pagamento e envio
Quantidade de ordem mínima: 1
Preço: Negociável
Tempo de entrega: 10-30 dias
Termos de pagamento: L/C, T/T
Habilidade da fonte: 10000 pelo ano

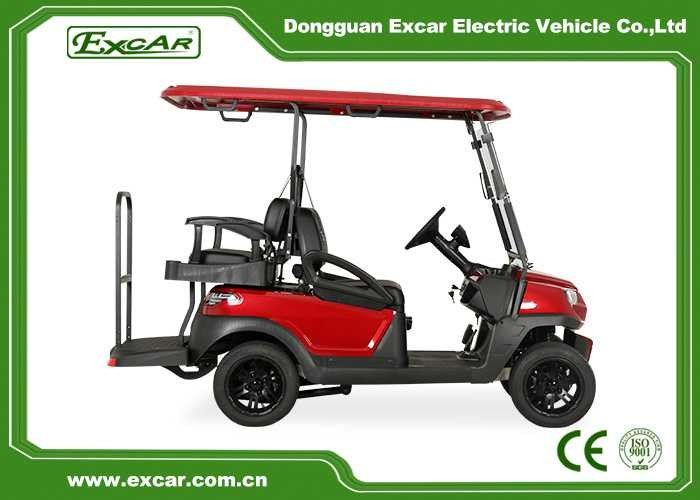

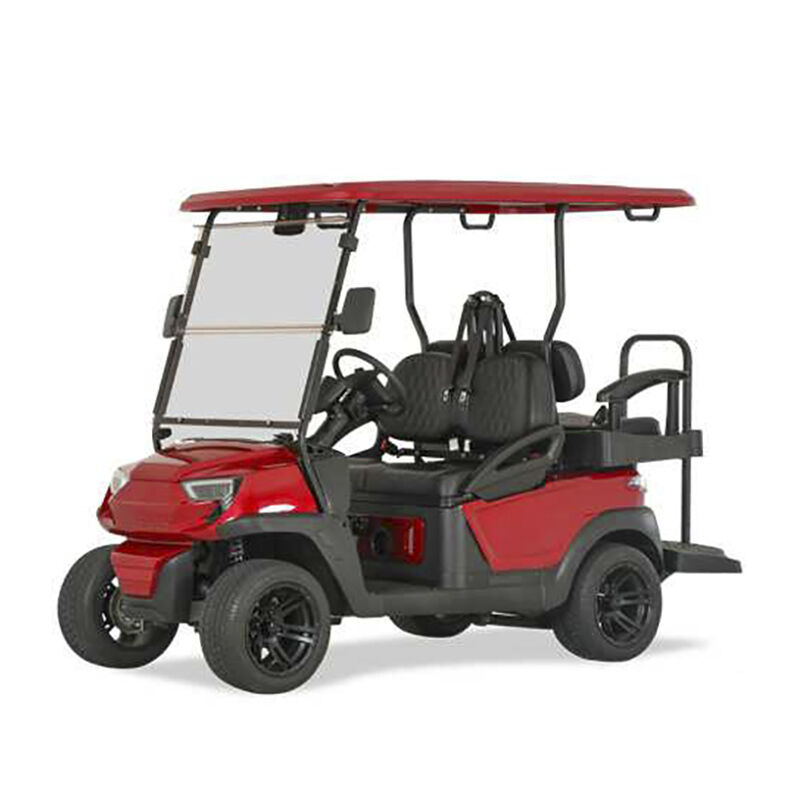

Excar Model:CK2+2FF
| DIMENSION | 2730×1220×1950 MM | PAYLOAD | 360 KG |
| F/R TRACK | 860/970 MM | CIMBING CAPACITY (FULL LOAD) | 30% |
| WHEELBASE | 1670 MM | CHASSIS | ALUMINUM CHASSIS |
| GROUND CLEARANCE | 130 MM | BODY PANEL | PP ENGINEERING PLASTIC |
| MIN. TURNING RADIUS | 2.9 M | MAX. FORWARD SPEED | 35 KM/H |
| NET WEIGHT | 480 KG | RANGE | 60-80KM |
| CONFIGURATION(AC system) | |||
| MOTOR | MOTOR 48V 5KW | BRAKE SYSTEM | REAR SELF-ADJUSTING DRUM BRAKE |
| CONTROLLER | CURTIS 48V 350A | STEERING SYSTEM | DUAL SELF-ADJUSTING RACK & PINION |
| BATTERY | LITHIUM BATTERY | F/R SUSPENSION | MAPHERSON INDEPENT SPRING SUSPENSION |
| CHARGER | 48V 25A REGULATOR | TYRE | 22*10-10TYRE |
Product advantage
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake or Four Wheels Disc Brake;
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the cart to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipment.
Color Options
Rims Options
Seats Options
